Built Different - Engineered to Perform
Invented and Built in the USA
CERAWAVE
™
Revolutionary Patented Technology for Efficient Plasma Generation
- Inductively coupled wireless load coil — Patented ceramic ring design transfers microwave energy directly into the plasma with minimal loss
- 99% coupling efficiency — Virtually no energy wasted as heat during plasma generation process
- Non-corrosive, non-consumable — The Cerawave ring does not corrode and requires no scheduled replacement
- No external water chiller required — Eliminates the flood of excess heat and noise that conventional chillers introduce to the laboratory
- Reduced energy and A/C demand — A critical advantage in remote and resource-limited installations
- Delivers highly stable plasma — Due to continuous power match between generator and load, despite changing loads from samples & matrix
99%
Coupling efficiency
0
Water cooling required
∞
Consumable lifespan
N₂ Plasma
Superior sample matrix tolerance from the world's only N₂ ICP source
- Highest energy coupling efficiency — Produces a robust plasma capable of analyzing difficult samples with high solids and organic solvent matrices
- Extended component lifetime — Microwave power generation components greatly outlast RF generators used with conventional Ar plasma systems
- Significant cost savings — N₂ is substantially less expensive than Ar, reducing ongoing operational costs
- Local N₂ generator compatibility — Opens significant ICP application opportunities where Ar supply is unavailable or cost-prohibitive
- Traditional ICP sample introduction components — Compatible with a wide variety of ICP nebulizers and spray chambers
Lower
Cost vs. Argon
Local
N₂ generation possible

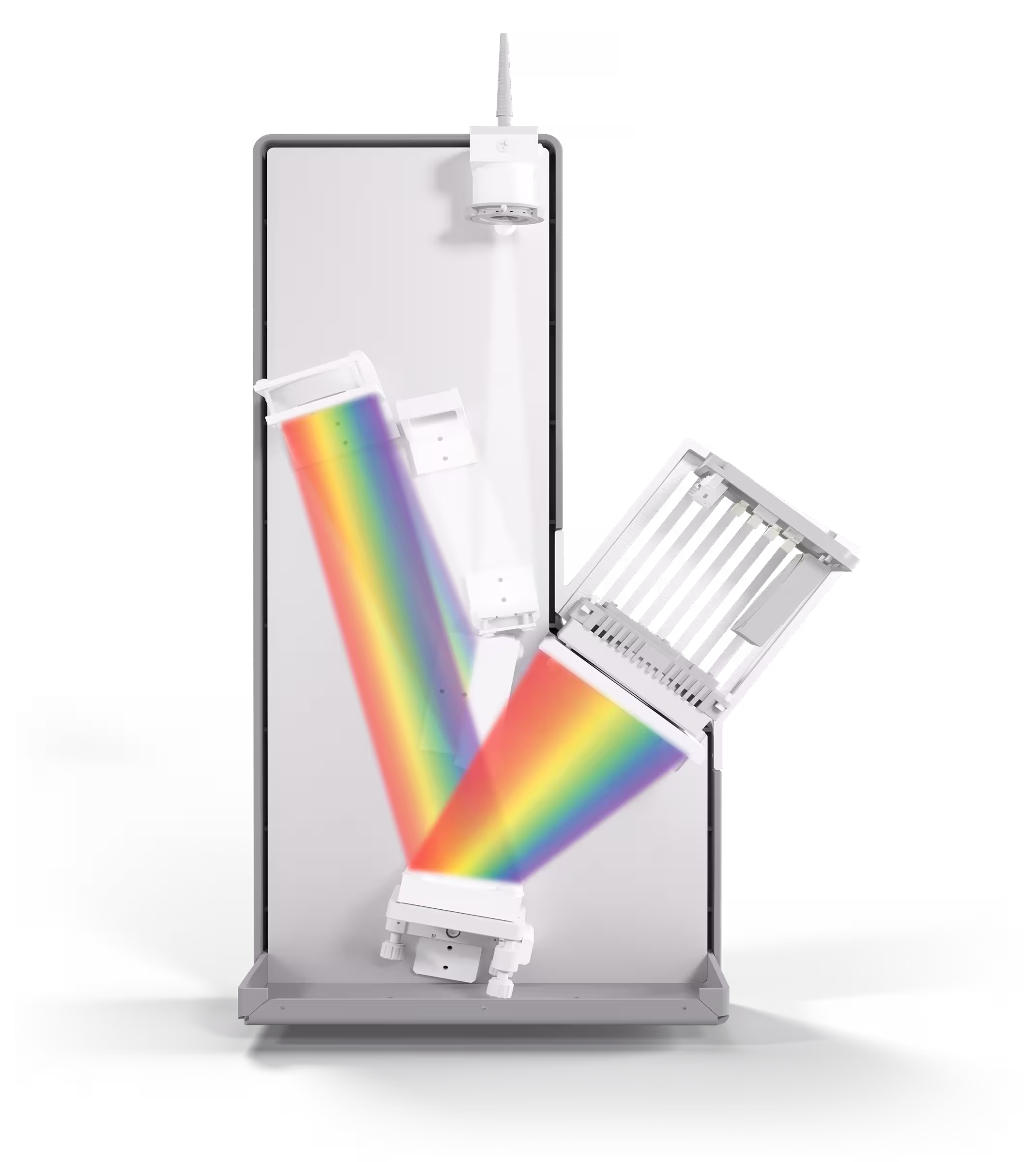

High Resolution Spectrometer
Compact high-performance Echelle design
4 MP sCMOS
State-of-the-art scientific CMOS sensor delivers exceptional sensitivity and dynamic range for trace-level elemental detection.
194–625 nm + 766 nm
Simultaneous full-range spectrum capture in a single measurement with every sample injection.
5–30 pm; <7 pm @ 200 nm
Exceptional resolving power minimizes spectral interferences and enables confident peak identification.
Fiber Optic Interface
Stand-alone Echelle spectrometer coupled to the plasma source via fiber optic for flexible module positioning.
ACTIVEPEAK TRACKING
Automatically monitors N₂ background and actively tracks peak positions in real time – ensuring measurement accuracy under varying operating conditions.
AIR-COOLED OPERATION
Operates under standard laboratory conditions without special cooling infrastructure, delivers consistent performance without complex environmental controls.
Radical Small Design
World's Smallest ICP-OES
- Compact footprint — Minimizes required laboratory bench space, fitting comfortably where full-size instruments cannot
- Uncomplicated installation — Facilitates deployment in both typical laboratory environments and remote field locations
- No chiller, no problems — Air-cooled operation eliminates the need for noisy, maintenance-dependent water chiller units entirely
- Modular architecture — Separate plasma and spectrometer modules enable unique service support, with replacement units available for rapid swap-out to minimize critical downtime
RIS: Radom Intuitive Software
Easy to learn, powerful in practice
DESIGN FEATURES

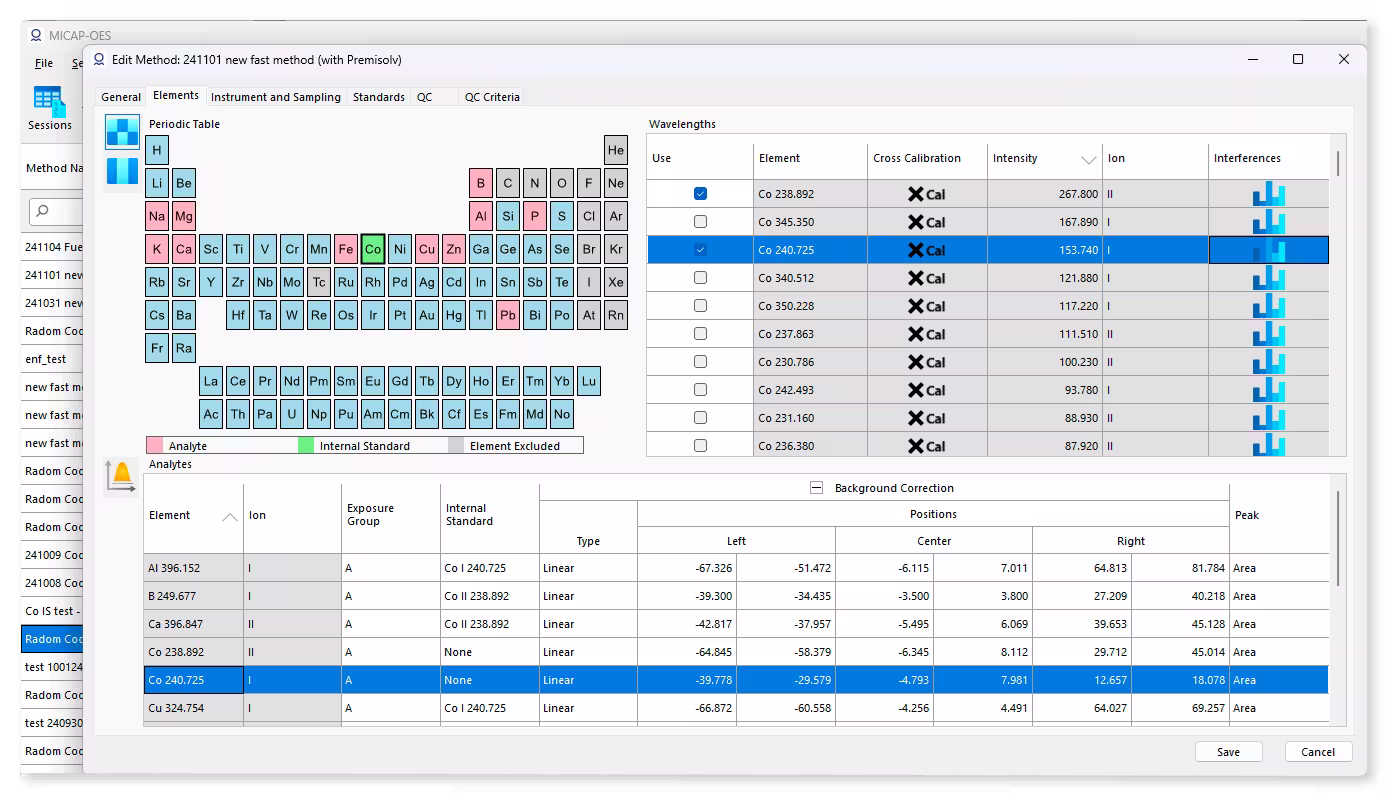

- Simplified Architecture — Methods define operating conditions; Sessions manage running samples — a clean separation that speeds up daily workflows

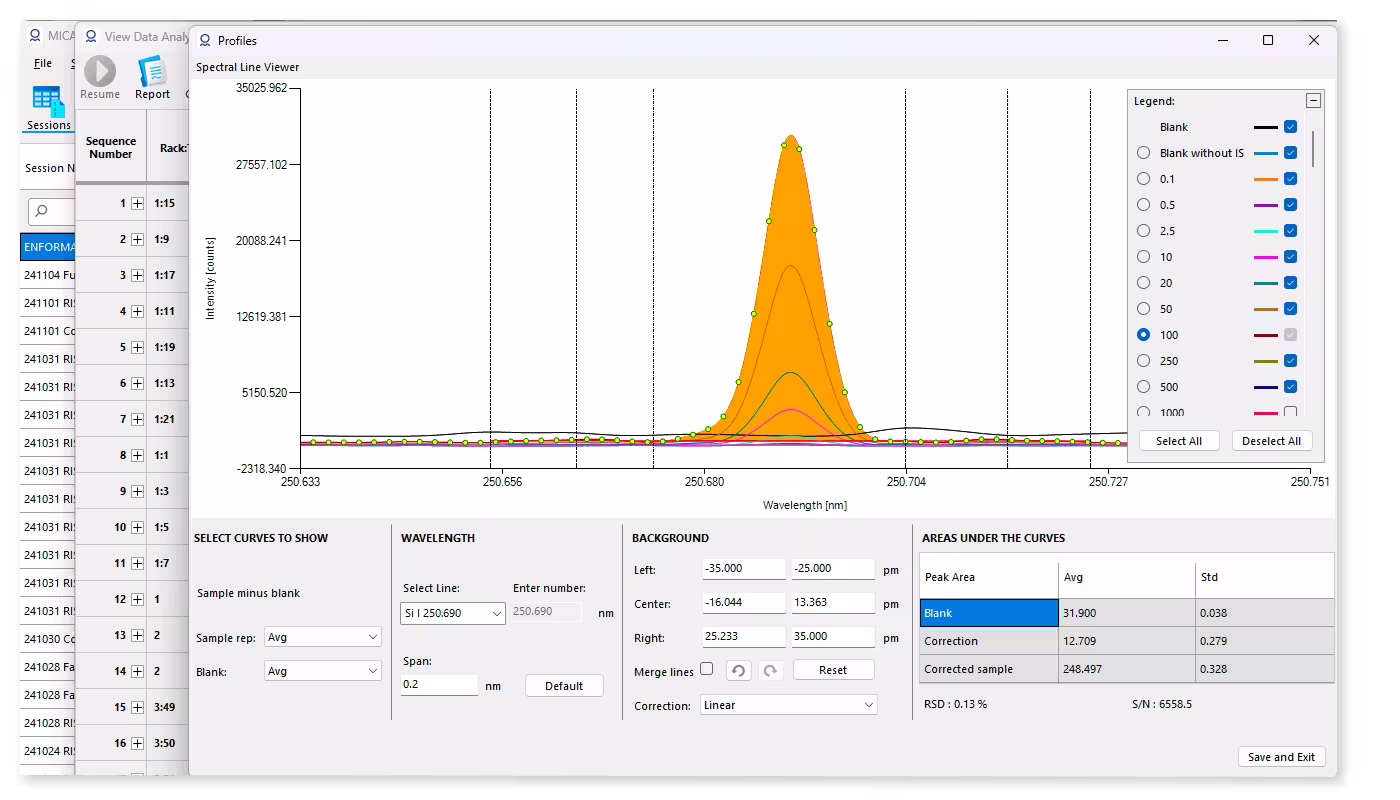

- Detailed Peak Viewing — Quick peak integration settings with a custom spectral database to aid peak selection and highlight potential interferences
- Continuous N₂ Background Correction — Real-time background correction ensures accurate quantitation across the full analytical wavelength range
- Automated Session Scheduling — Schedule multiple sessions with different samples and analytes; pause active runs to insert urgent samples, then resume seamlessly
PERFORMANCE FEATURES
- Full Spectrum Data Capture — Post-processing on additional elements and emission lines without re-running samples — full flexibility after acquisition
- Method of Standard Additions — Built-in MSA calibration mode for challenging matrices where external calibration is insufficient
- Extended Linear Range — Cross-calibration across multiple emission lines extends the linear dynamic range for high-concentration samples
- Autosampler Integration — Works seamlessly with a variety of autosamplers and valve systems for high-throughput, hands-free applications
See the Technology in Action
Book a free personalized live demo!
